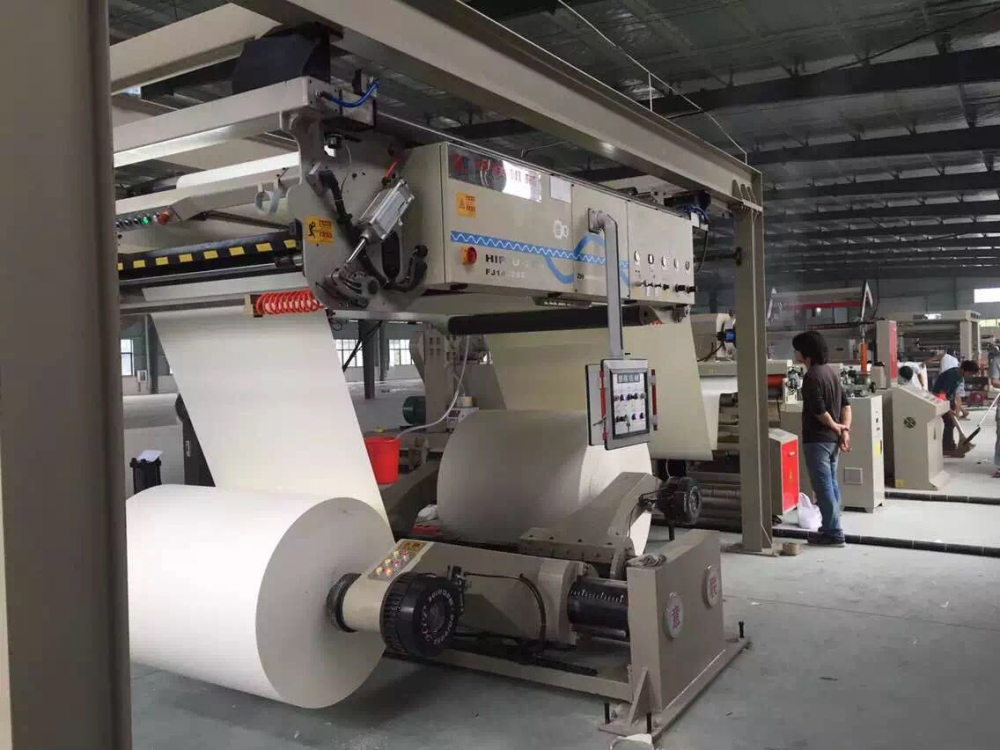

WSFM1100-2000B Double Sides High Speed Extrusion Coating And Laminating Machine(Auto splicer)
model：WSFM1100-2000B
category：Laminating Machine - WSFM shaft arm automatic laminating machine
application：
Pro Info
Scope of application：
Main features:
PLC man-machine interface centralized control, machine, electricity, gas integrated design. High precision, non edge imported original die head
High speed and efficient mixing equipment (US technology)
New technology static mixing device (Italy Technology)
Quick exchange network.
Equipped with dry type composite system, with the function of dry composite machine
And can be matched with a single extruder, Twin Extruder, extruder, multilayer coextrusion
Main technical parameters:
machinery specification
| 1100/90mm;1300/100mm;1500/105mm;1800/110mm |
speed of coating film | 150/180/200 m/min |
suitable coating resin film | LDPE/PP/ EVA /EAA |
suitable base material
| BOPP/BOPET/BOPA/CPP/CPE/PAPER/AL/NONWOVEN |
width of coating film | 1100/1300/1500mm/1800mm |
thickness of coating film | 0.012~0.1mm |
inaccuracy thickness of coating film | ≦±5% |
complex cooling roller | Φ500/Φ600/Φ700mm |
screw specification | （L/D）Φ90:33/Φ100：33/Φ105:33/Φ110:33 |
main unwinding diameter | Φ800-1500mm |
diameter of auxiliary unwinding | Φ600mm |
diameter of rewinding | Φ800-1700mm |
