High Speed Blister Packing Machine

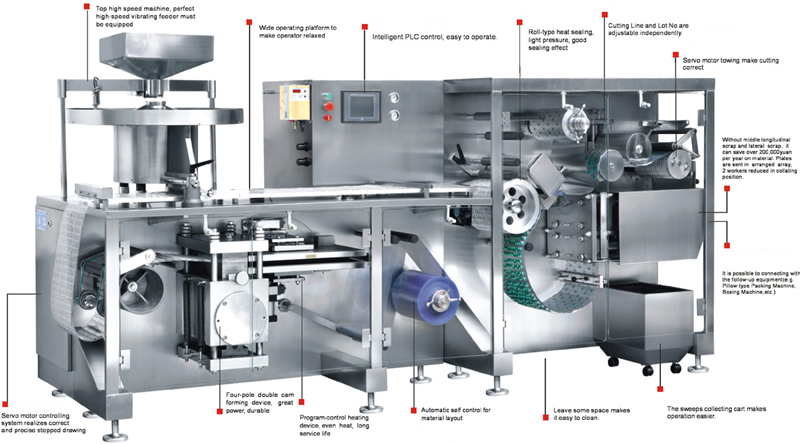

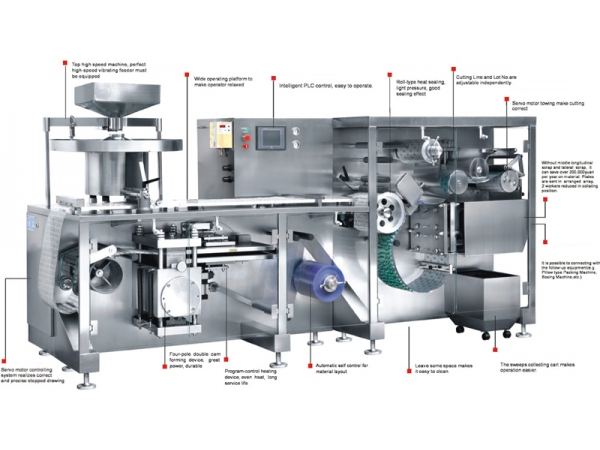

The product as shown in the picture is our high speed blister packing machine, DPH-220AS/260AS. It is new generation roller plate, high precision blister packing equipment developed by our company. The high speed blister packing machine is generally adopted for aluminum-plastic and paper-plastic airtight packaging of capsules, tablets, food, candies, medical appliances, electronic components, and more.
Main Technical ParametersHigh Speed Blister Packing Machine, DPH-220ASNon-toxic PVC: (Thickness) 0.25 X (Width) ≤220 (mm)
Aluminum Foil PTP, PVC, PTP: (Thickness) 0.02 X (Width) ≤220 (mm); OD of Reel < φ400mm; Diameter of Reel Core: φ70~80(mm)
Cutting Speed (3 Gears) : 40~120 (times/min)
Packing Efficiency: 110,000-170,000 capsules/h; 1500,000-300,000 tablets/h
Overall Dimensions: (LXWXH) 3140X940X1600mm
Weight: 4000Kg
Installed Power: 12.5Kw 380V 50Hz/220V 60Hz
High Speed Blister Packing Machine, DPH-260ASNon-toxic PVC: (thickness) 0.25 X (Width) (180-260) mm
Aluminum Foil PTP, PVC, PTP: (Thickness) 0.02 X (Width)(180-260)mm; OD of Reel < φ400mm; Diameter of Reel Core:φ70~80(mm)
Cutting Speed(3 Gears): 40~120 (times/min)
Packing Efficiency: 160,000-260,000 capsules/h; 220,000-450,000 tablets/h
Overall Dimensions: (LXWXH) 3140mmX940mmX1600 (mm)
Weight: 4000Kg
Installed Power: 12.5Kw 380V 50Hz/220V 60Hz
