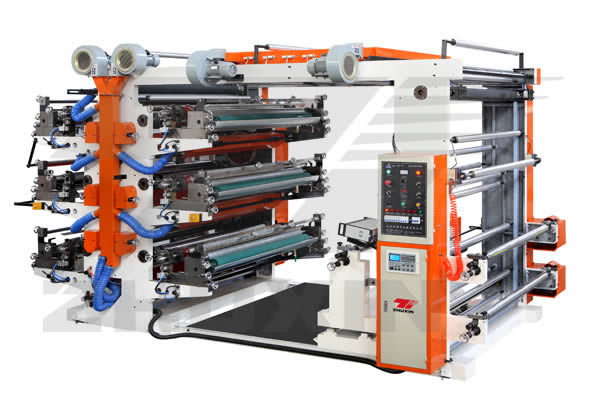

YT six color flexo printing machine is a machine whose template material is light-sensitive resin. YT six color flexo printing machine is suitable for printing polyethylene, polypropylene plastic bags, cellophane, paper roll and other packaging materials, and is an ideal printing equipment for printing food bags, supermarket shopping bags, vest bags, cloth packaging bags, and so on.
| Model of Machine | YT-6600 | YT-6800 | YT-61000 |
| Max. Width of Substrate ( mm ) | 600mm | 800mm | 1000mm |
| Max. Printing Width ( mm ) | 560mm | 760mm | 960mm |
| Range of printing Length ( mm ) | 191-1100mm | 191-1100mm | 191-1100mm |
| Max. Diameter of web ( mm ) | ф450mm | ф450mm | ф450mm |
| Printing Speed ( m/min ) | 5-50m/min | 5-50m/min | 5-50m/min |
| Plate Thickness( mm ) | 2.38mm | 2.38mm | 2.38mm |
| Total Power ( kw ) | 27.25kw | 27.25kw | 27.25kw |
| Weight of Machine ( kg ) | 3500kg | 4200kg | 4500kg |
| Overall Dimensions ( L*W*H ) ( mm ) | 4200×1660 ×2950mm | 4200×1860 ×2950mm | 4200×2060 ×2950mm |
YT six color flexo printing machine is equipped with six different color boxes and printings can be very colorful and clear. Small printing force can be attained under the condition that printing quality is good, so flexo printing machine can operate smoothly and service life is also extended. Advanced pulling force regulating device can maintain the optimal pulling force so that there will be no wrinkles and high quality printing can be achieved. Reliable drying system can make sure that ink will not contaminate the plastic bag. As can be seen from the table above, printing speed and production efficiency is quite high.
Our company is a China-based six color flexo printing machine manufacturer. We provide a vast range of products including three layer film blowing machine, transparent film packaging machine, vertical slitting machine, plastic roll bag making machine, and more.
