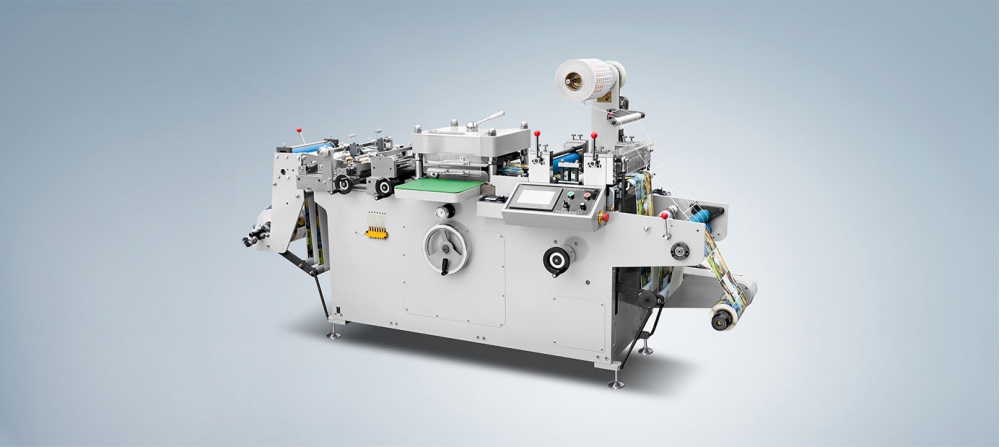

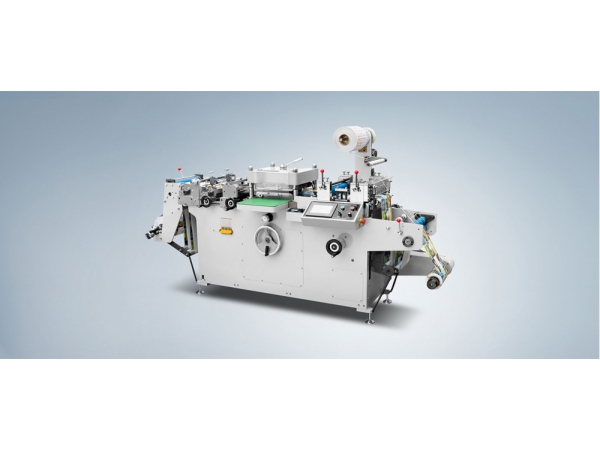

This machine adopts accurate flat die-cutting system, controlled by servo motor. There are two sensors to control the web-guider and one sensor to follow the registration mark. It’s suitable for die-cutting all kind of adhesive labels and hologram labels. It’s the ideal converting machine for flexo printing machine, screen printing machine and gravure printing machine.
Main Technical Parameters
Model WQM-320G WQM-420 Cutting speed 20-220 (T/Min) 20-210(T/Min) Max.unwinding diameter 500mm 500mm Max.web width 320mm 420mm Max.die-cutting width 300mm 400mm Max.die-cutting length 300mm 400mm Accuracy ±0.15mm ±0.15mm Total power 3.5kw 4.5kw Power supply 220v±10% 380v Machine weight (About)1700kgs (About)2300kgs Dimensions(L×W×H) 2600x990x1400mm 2950×1350×1400mm
