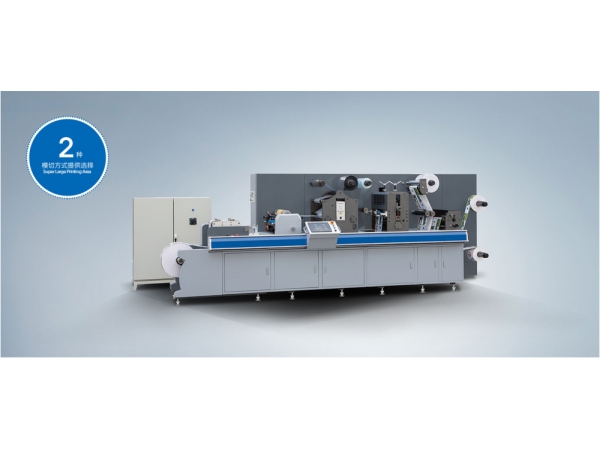

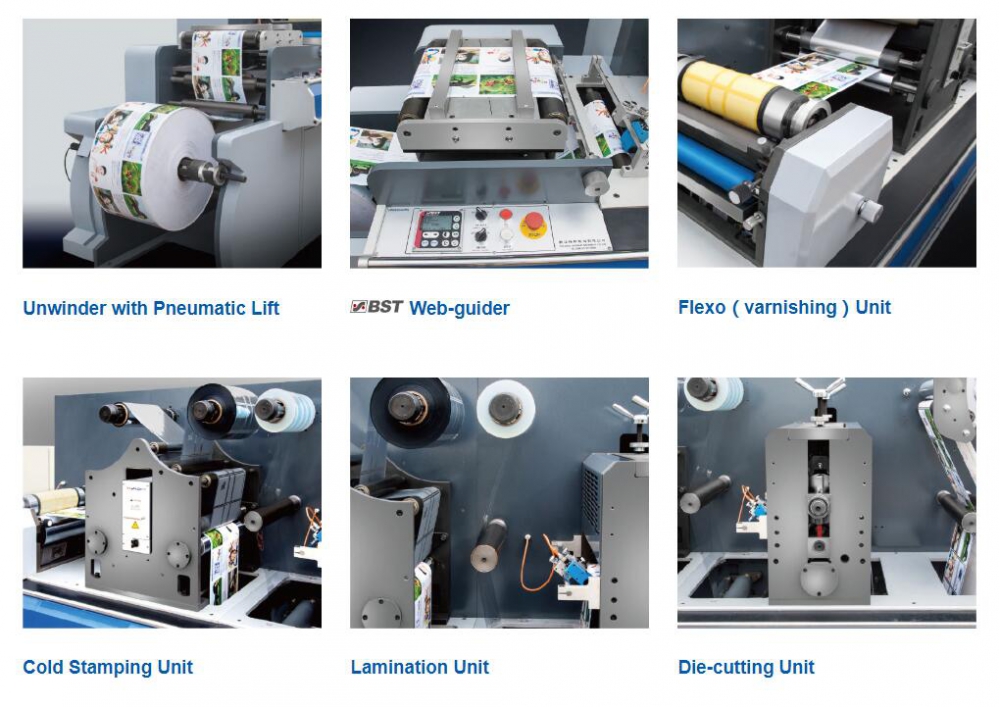

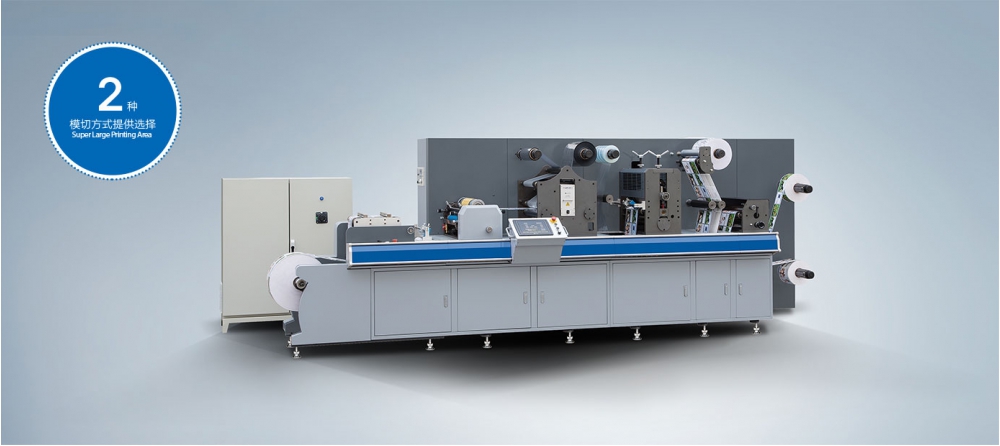

It can be full rotary or semi-rotary die-cutter according to the production requirement. When ZM-320 runs in semi-rotary mode, the tension among unwinder, web-guider and rewinder will be the same (different from traditional intermittent type), the material will not run away during the die-cutting.
Semi-rotary die-cutting unit adopts one big magnetic cylinder, if you have different applications, the only job is to change the flexible die. If the job is large quantity,then you can choose full rotary die-cutting mode(even in full rotary die-cutting mode,the registration is available and perfect), it will highly increase the die-cutting output. ZM-320 machine has the characteristics of fast speed, super accuracy ,easy operation, high efficiency and less cost. It’s good for all kind of label die-cutting jobs,including short run and long run. ZM-320 rotary/semi-rotary label die-cutting machine committes to make the maximum profit for you, it's an ideal converting machine for the printing house.
Main Technical Parameters
Model ZM-320 Max. Die-cutting speed(rotary) 120m/min (semi-rotary) 65m/min Max. Die-cutting length(rotary) 190.5-539.75mm (semi-rotary) 100-350mm Max. Die-cutting width 300mm Max. web width 320mm Max.unwinder dia. 700mm Mac.rewinder dia. 600mm Die-cutting accuracy ±0.1mm Slitting width ≥20mm Power supply 380V 3P Weight 2600kgs(one die cutting unit+one slitting unit) Dimensions(L×W×H) 3220×1680×1660mm
(one die cutting unit+one slitting unit)
