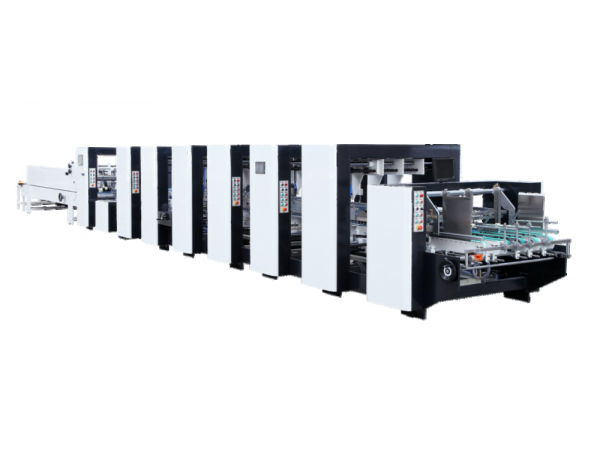

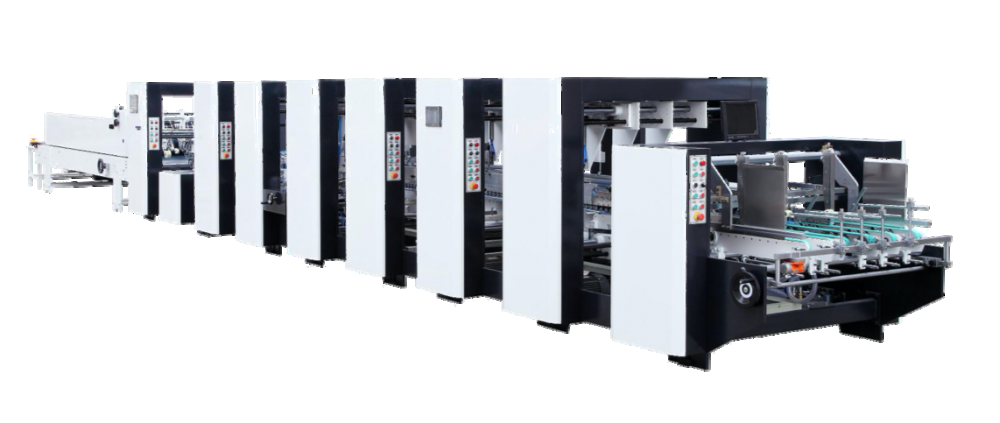

PCS Automatic high speed 4 and 6 cornerfolding gluing machine，Perfect solution to work in the heavy packaging industry.
PCS Series folding gluing machine with 4/6 corner function, each set is controlled by independent motor, adopts electrical regulating board, PLC, imported electronic components, three plates track mode device. Aluminum plates are all Chute structure, which is easy to add spare parts. The machine is especially designed for all kinds of 4/6 corner cardboard or corrugated packaging boxes, which can meet to all kinds of requirements of automatic packaging field.
Able to produce complex carton structures, straigh line, lock bottom, 4 & 6 corner cartons and more.
Technical Parameters
MODEL 1200 1450 1600 1800 Paper material Cardboard 210-800gsm，A/B/E A/B/E Flute Max.speed 260m/min Max.thickness of folded box 12mm 12mm 12mm 12mm Way of folding Fold 1 and fold 3 are 180°and 135°,fold 2 and fold 4 are 180° Power supply 3P 380V 50HZ Blank width 1200mm 1450mm 1600mm 1800mm Length x Width x Height 16.5x1.84x1.7m 16.5x2.14x1.7m 16.5x2.24x1.7m 16.5x2.49x1.7m Net Weight 9.5T 11T 13T 14.5T Total power 31.28kw 34.28kw 34.28kw 34.28kw
