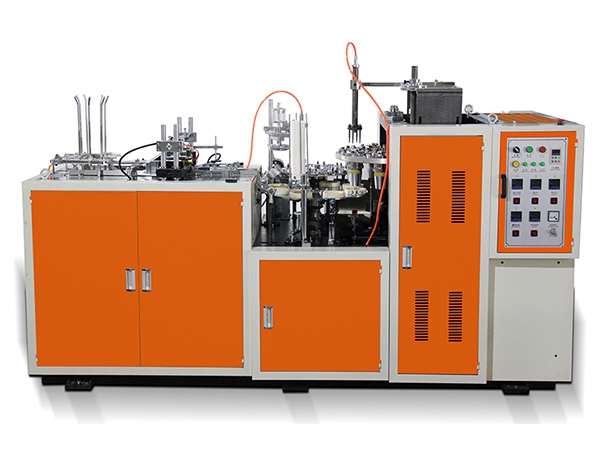

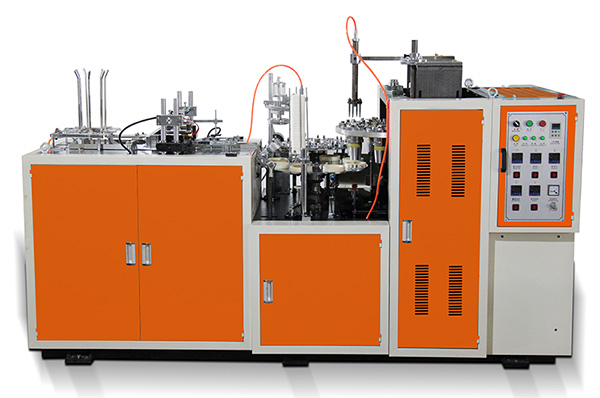

This paper cup forming machine is upgraded on the basis of chain drive type, it can accomplish the complete processes of paper feeding, paper cup blank sealing, oiling, bottom punching, heating, rolling, rimming and rounding. It is suitable for producing beverage cups, coffee cups, advertising cups, etc.
If you are looking for PE coated paper cups or paper weight greater than 250g/m2, then ultrasonic paper cup machine is recommended due to its capability of producing both single and double PE coated paper cups.
Model ZB-D Cup size 2-12oz (mold need to be changed for different sizes) Applicable paper material 150-380g/m2 (single or double PE-coated paper) Production capacity 50-70pcs/min Power source 220V, 380V 50HZ (please inform us your power in advanced） Total power 4KW Weight 2000 kgs Package size 2500 x 1400 x 1700 mm Working air source Air pressure 0.4Mpa; Air out-put:0.6m3/min
A: top diameter: Min. 45mm---Max. 90mm B: bottom diameter Min. 35mm---Max. 75mm C: total height Min. 30mm---Max. 115mm D: bottom knurling depth Min. 4mm---Max. 12mm E: rim diameter Usually Φ2.5---Φ3
