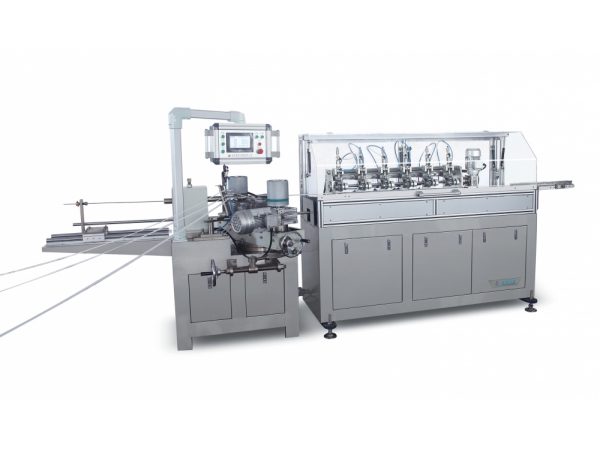

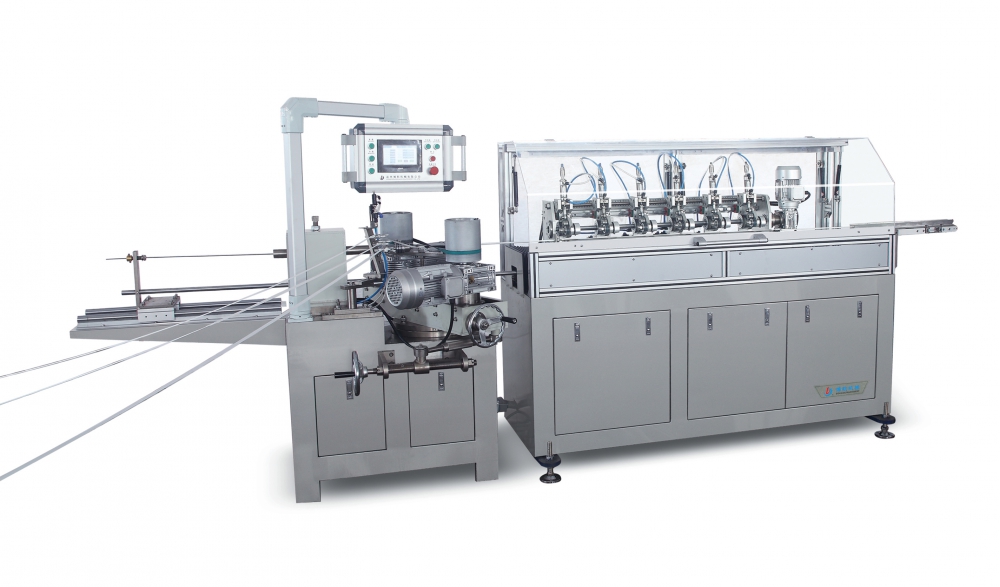

High-speed Paper Straw Machine integrates paper feeding, gluing, winding, cutting, conveying and receiving. It is equipped with CNC multi-knife cutting system. The finished paper pipette can be cut on-line. It is suitable for 5-12mm diameter paper pipette.
Technical parameters
Paper Layer | 2-5Layers |
Lnner Diameter | 4.5-12mm |
Wall Thickness | 0.3-1mm |
Winding Speed | 30-60（meters/min） |
Cutting Type | Multi-blades(5/6pcs) |
Cutting System | Servo motor synchronism tracking cut |
Gluing Way | Single/Double sides |
Power Supply | 380V 50Hz 5.5KW |
Main machine size | 5600*1600*1750mm |
Occupied area | 11000mm * 6000mm*2000mm |
Weight | 1200kg |
Name | Specifications | Number | Manufactor |
Cutting motor | 0.55KW | 1 | South Anhui |
Rolling axle motor | 0.55KW | 1 | South Anhui |
Paper coiling motor | 1.5KW | 2 | South Anhui |
Motion controller | 1 | WEICON | |
Touch screen | 1 | WEICON | |
Frequency converter | 3.7KW | 1 | Schneider |
Pneumatic components | Some | AirTAC | |
Electrical components | Some | Schneider | |
Bearing | Some | Harbin | |
servo motor | 1KW | 1 | Schneider |
lead screw | TBI2525-6 | 1 | TBI |
Linear slider | TRH20B | 2 | TBI |
Linear slider | TRH25B | 2 | TBI |
Follow machine list | |||
Paper frame\Glue frame | one in each | ||
Belt | 3strip | ||
mandrel | 2strip | ||
tool case | 1 set | ||
