This machine is mainly used for automatic forming of elastic cloth ear belt plane mask machine: The whole roll of cloth is put together by rollers, the cloth is folded by the machine, the nose bar is pulled by the whole roll to put the roll, the elastic cloth lug is cut into the edge cloth after the whole roll is put into the length of the material. The two sides are sealed by ultrasonic welding, then sealed by ultrasonic side, and forming by cutting knife.
Installation and quipment requirements.

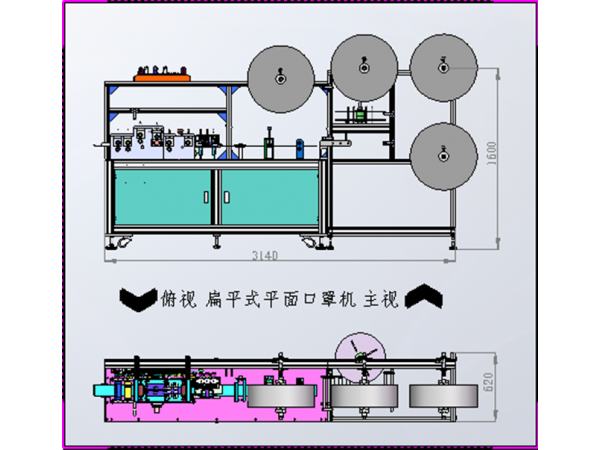

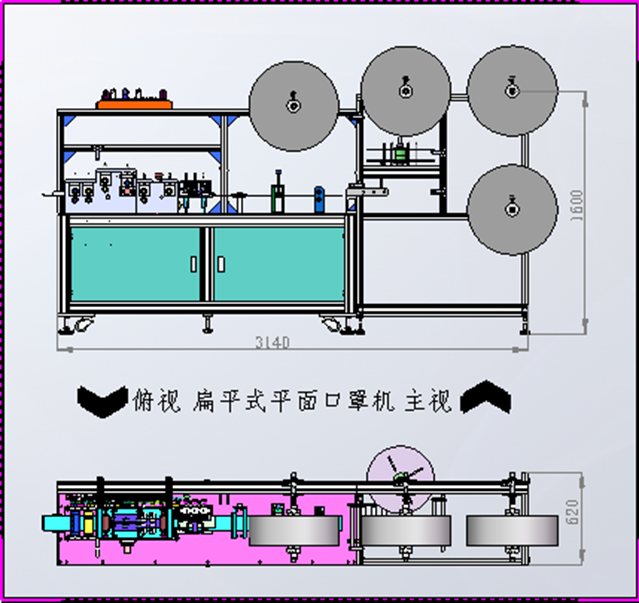

1） Machine size：3140mm(L)*750mm(W)*1650mm(H)；
2） Weight：≤1000KG，ground bearing≤300KG/㎡；
3） Voltage：220VAC±5%，50HZ，rated power about：6.8KW；
4） Compressed air：0.5~0.7MPa
5） Temperature requirement 10~35℃、humidity 5-35%HR，no combustible or corrosive gases, no dust
（No less than 100,000 degrees of cleanliness）

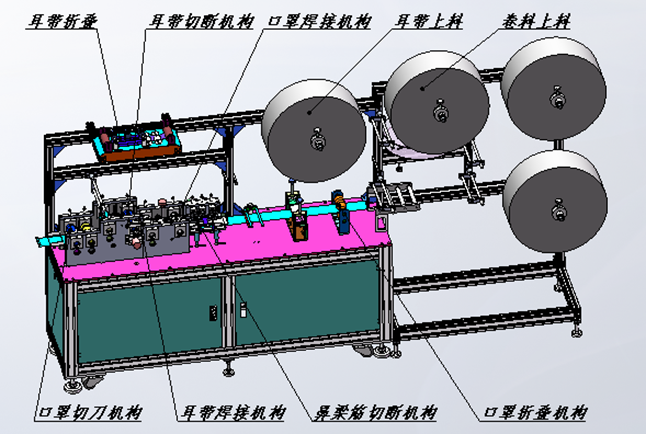

Main components of equipment
NO | NAME | QTY | REMARK |
1 | CLOTH SHELF | 4SETS | |
2 | INERTING NOSE WIRE AND EMBOSSING PROCESS | 1SET | |
3 | ELASTIC FABRIC EAR LOOP FORMING DEVICE | 1SET | |
3 | FACE MASK FOLDING AND FORMING DEVICE | 1SET | |
4 | FACE MASK FOLDING AND BONDING DEVICCE | 2SETS | |
5 | FACE MASK CUTTING | 1SET | |
6 | CONTROL SYSTERM | 1SET | |
7 | CONTROL PANEL | 1SET |
