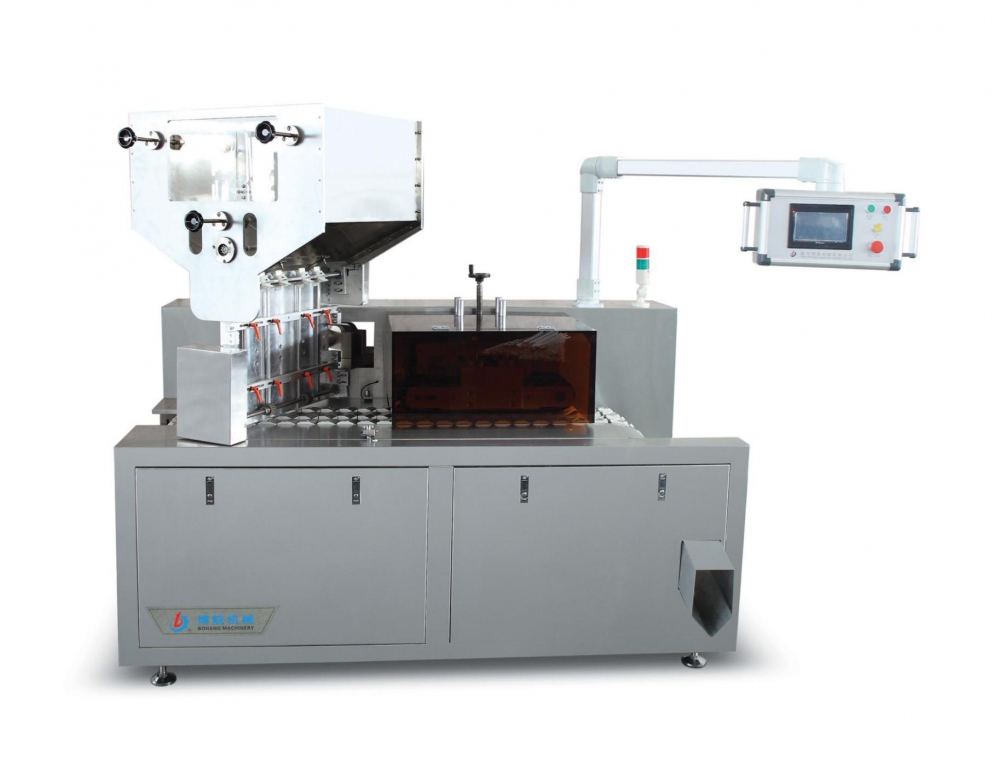

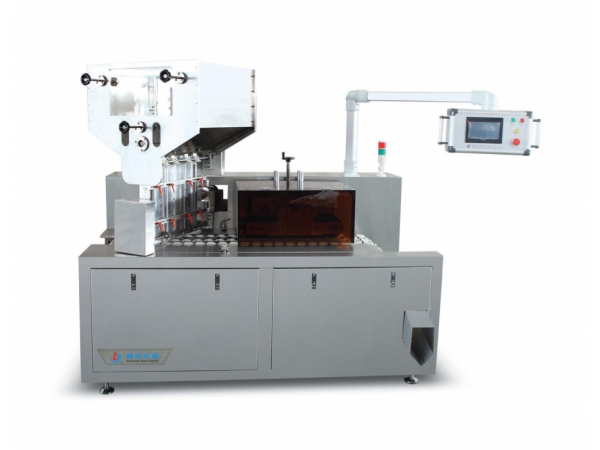

BHX-600 Automatic Bevel Paper Straw Machine
Product performance and characteristics:1. The device realizes the automatic oblique cutting of a single double (or single) length suction pipe into two (or single) suction pipes, which integrates the automatic dropping of suction pipe and oblique cutting.2. This machine is controlled by PLC. The host machine is equipped with frequency conversion and speed regulation. The man-machine interface is touch screen. It is simple to set and easy to operate.3. The cutting part adopts multi-knife cutting system, which has no waste, high precision, time-saving and high efficiency.4. The main accessories are made of stainless steel to ensure the hygiene and environmental protection of the products.
Main technical parameters
Max cutting speedCutting Speed | 1000（meters/min） |
Straw Length | 80-300 |
Straw Diameter | 4-14mm |
Power Supply | 380V 50Hz 2KW |
Main machine size | 1900*1800*1700 |
Weight | 300kg |
