It can be applied to the various kinds of packaging for products──stationery，industrial paperboard, plastic blister package widget,medical equipment,toys,battery,electronic product,automobile,motorcycle accessories,commodity, cosmetics, rubber products,tableware and cooker.
For example: Medical injection, injection syringe,toy car, electronic torch,sparking plug,toothbrush,lipstick,mask,chopstick,shaver,scissor,hook,cleaning ball,bottle opener,correction fluid,ball-point pen,pencil, pencil sharpener, etc.
It’s especially suitable for companies with low production capacity that has various products and acquires changing molds frequently.

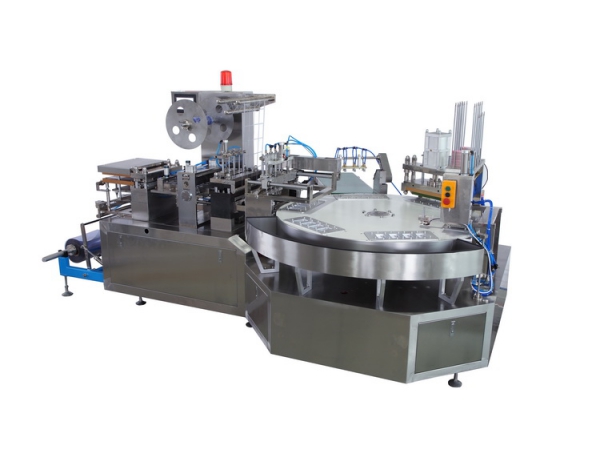

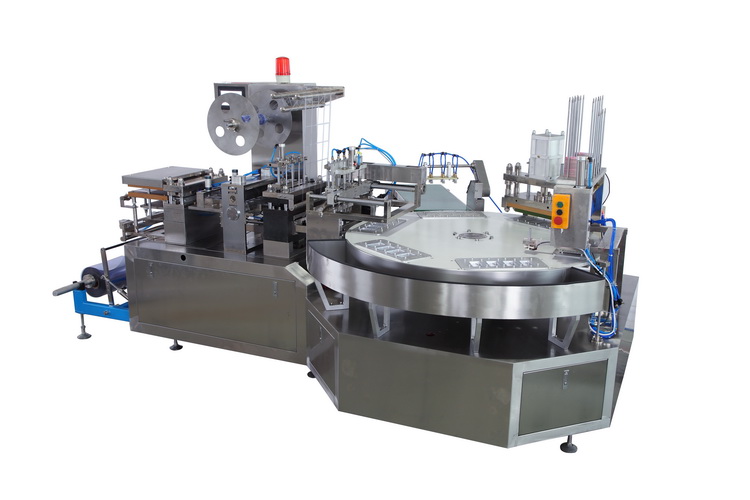

Main Performance Characteristics 〉The assembly line consists of blister molding machine and
rotating heat-sealing machine. 〉The positive/negative pressure molding, precise
forming, make the product more beautiful. 〉Automation helps save labor work and material. 〉It uses servo motor drive steplessly and is easy to
adjust 〉the separate-type design makes it convenient to transport
and is free out of the elevator 〉Full humanity with low noise 〉It’s very easy to change the molds, thus improving the
production efficiency 〉Molds can be designed according to special needs and
auto-feeding device is alternative

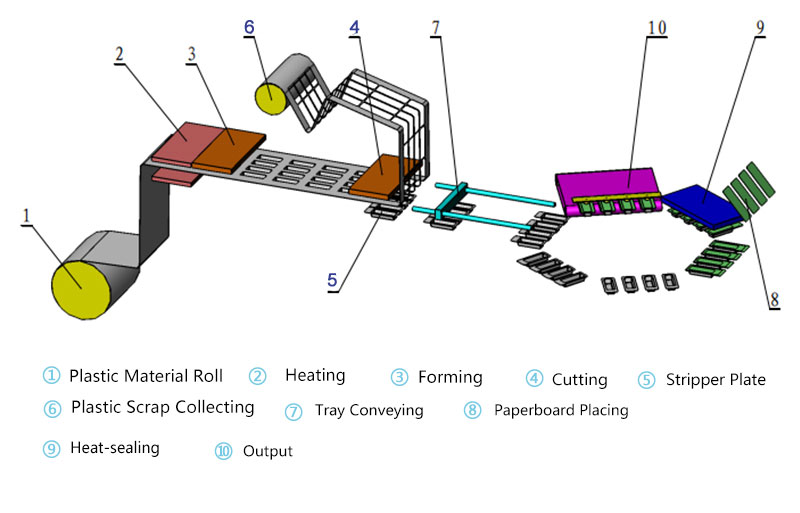

Schematic diagram
Main Technical Parameters Item Parameters Cutting Frequency 10-25 times/min Adjustable Travel Range 35-160mm Max. Forming Area 340×160mm Max. Forming Depth 38mm(Special machine 50mm) Forming And Heating Power (Upper and Down) 1.8KW(×2) Sealing and Heating Power 3.5KW Total Power 380V 50HZ（480V 50HZ）10KW Main Motor Power 1.5KW Air Pump Volume Flow ≥0.6m3/min Packing Material Roll ≤400mm(Diameter)*350mm(Width)* 0.2-0.5mm(Thickness) Paperboard ≤350×200×0.5mm (L*W*H) Overall Dimensions (3650*2500*1850)
mm (L*W*H) Weight 1800Kg
