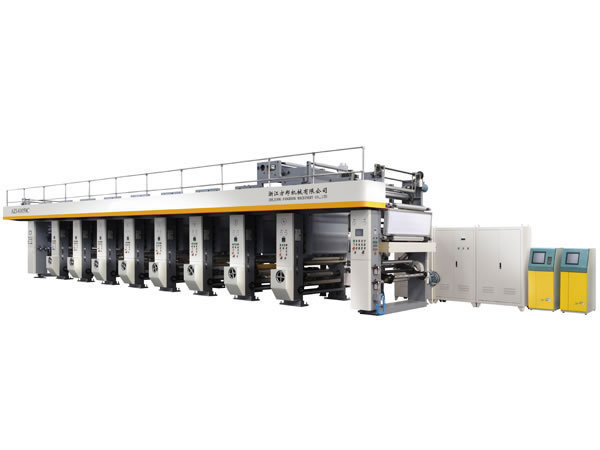

This AZJ-C gravure printing machine is identical to the AZJ-A series product in terms of its applications and performance. Different from the AZJ-A series machine, this series printing press comes with a compensation roller that moves up and down for easier, more accurate control. Therefore, the resulting print may be more impressive.
Characteristics of Gravure Printing Machine
1. Our gravure printing machine delivers high working efficiency. It comes with 7
motors, and its maximum printing speed reaches up to
2. This product adopts the shaftless device for easy mouting of the printing plate.
3. The computerized printing press can display the printing speed and meter readouts.
4. Its main machine takes advantage of the frequency converter for speed
regulation.
5. The microprocessor is mounted on all control units of the automatic color register system. It can correct the deviation
of the printed color fast and accurately.

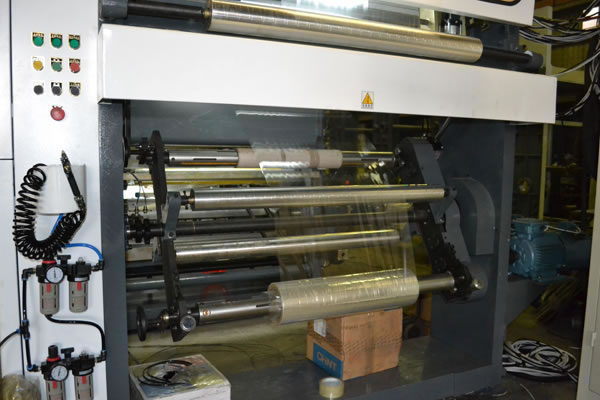

6. The unwinding tension is controlled by the magnetic powder brake and the
automatic tension controller.
7. The rewinding process is supported by the torque motor. Our automatic
turnover device features double station.
8. In addition, our gravure printing press utilizes the air shaft for
both unwinding and rewinding.
9. Its sealed drying oven comes with the stand-alone air supply and heating
system, as well as the constant temperature control system.
10. Both printing system and ink scraping system are pneumatically operated.
Moreover, the membrane type automatic ink circulation system is also
pneumatically operated.
11. If required, our gravure printing
machine can be configured with the web video inspection system.
