Product Description

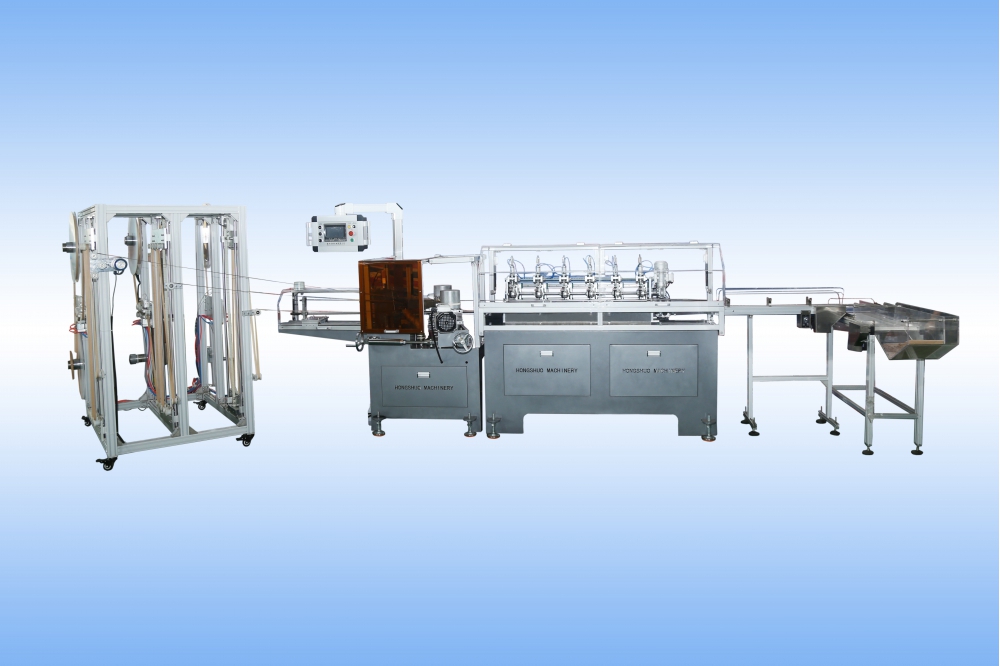

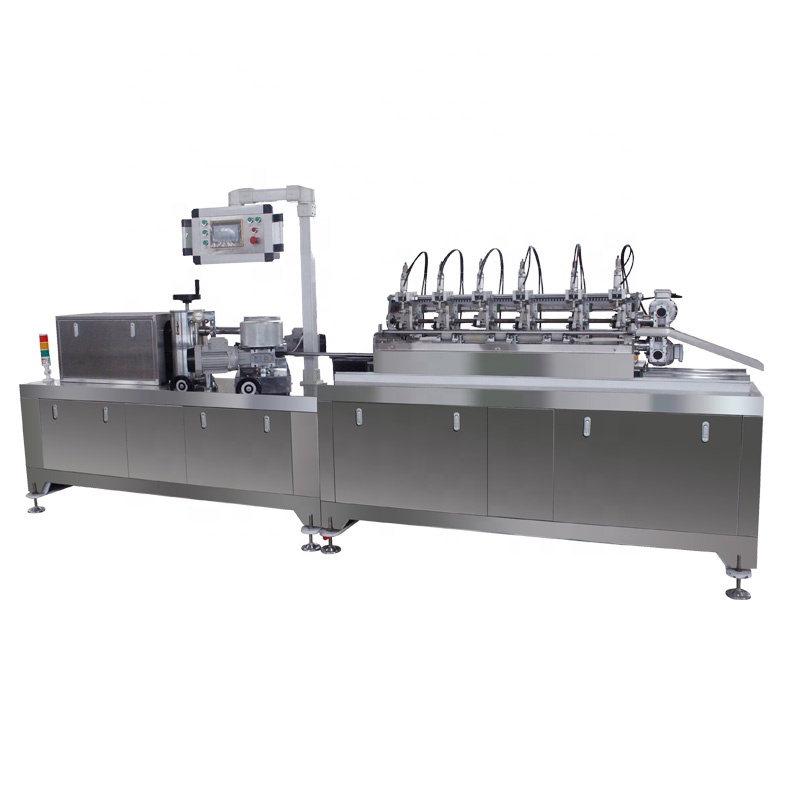

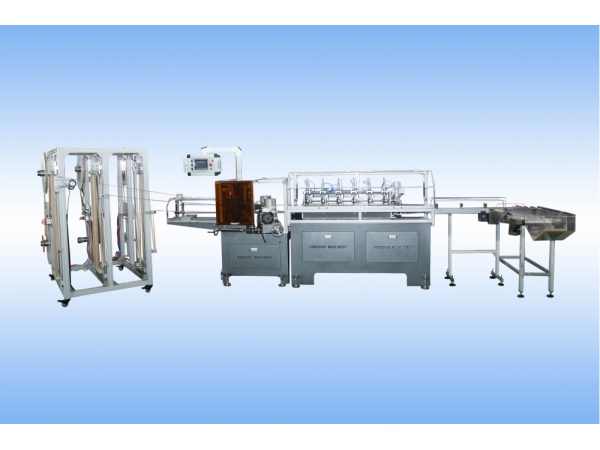

High Speed Paper Straw Machine


This Machine is suitable for producing different sizes of paper straws and very small paper tubes.

[1] It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.

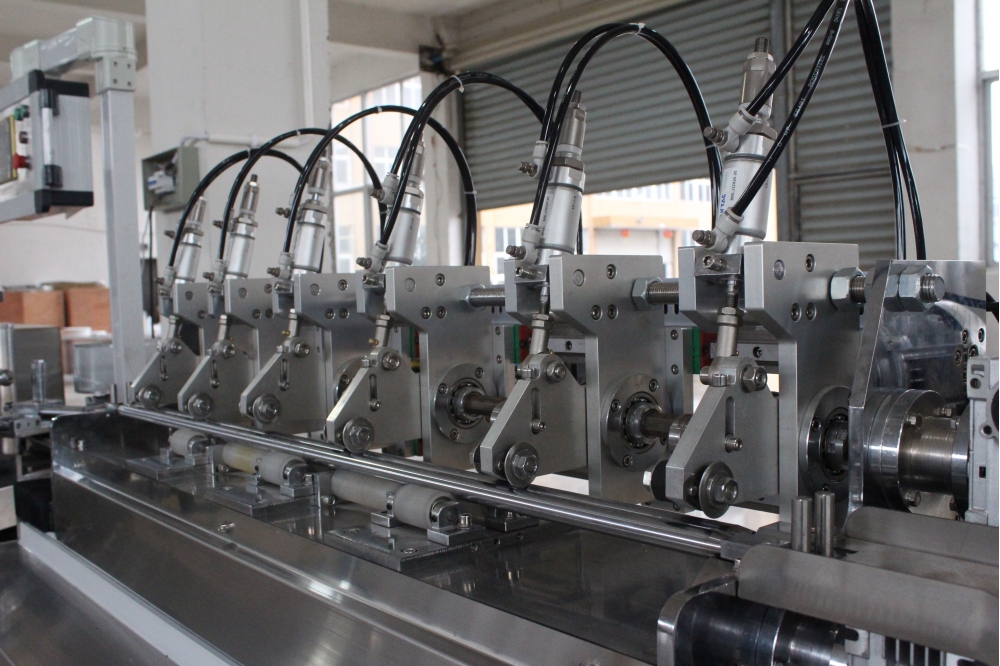

[2] Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.

[3] Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.

[4] Paper and glue stand is Integral Type. Euipped with Auto Paper Connection system and Glue Heating system. Improved machine running speed.


Technical Parameters


Technical Parameter

Control System

Paper Layer

3 layers

Total Power

7.0kw

Paper Straw OD

5-12mm

PLC

Chuangfeng

Wall Thickness

0.5-1mm

Operating Panel

Panel Master

Stable Speed

55-60 meters/min

Inverter

3.7kw Schneider

Winding Nose

Two noses single belt

Electric Components

Schneider

Cutting System

Numerical Multi-blades

(7 cutters online

Servo Motor

Schneider

Synchronism tracking cutting system

Servo motor synchronism tracking

Pneumatic Components

Jingwei

Bearing

Haerbin

Gluing Way

Single/Double sides

Screw Rod / Slider

Shangyin

Paper Straw Collecting

Online

Configuration

Operator

1-2 person

Paper Reel Stand

3 Layers

Auto Paper Connection

Power Supply

380V/3Phase/50Hz

Gluing Unit

3Layers

Equipped with Heater

Measurement & Weight

Winding Belt

5 Pieces

Measurement

3500*1500*1200mm

Mandrel Shaft

2 Sets

Working Space

7000*5000mm

Cutting Bldes

15 Pieces

Weight

1400kgs

Useful Tool

1 Set
