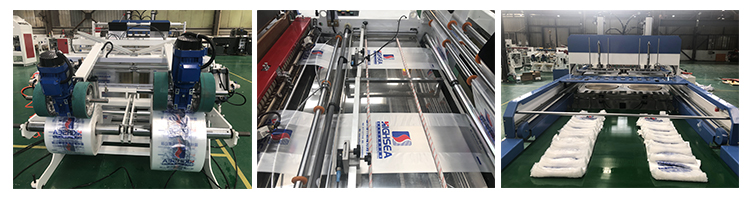

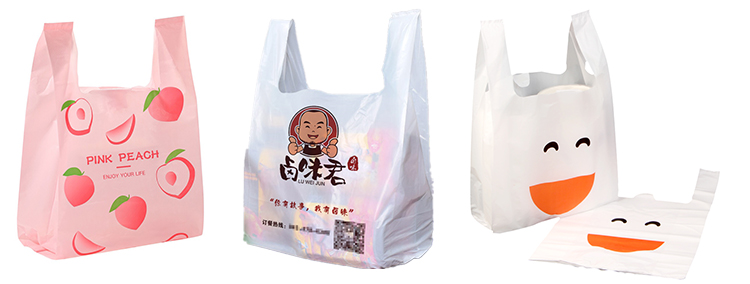

This machine is two lines heat sealing and heat cutting design, which are suit for printed bag and non-printed bag production. The material of bag which machine can make is HDPE, LDPE and recycle materials and films with filers and biodegradable films.

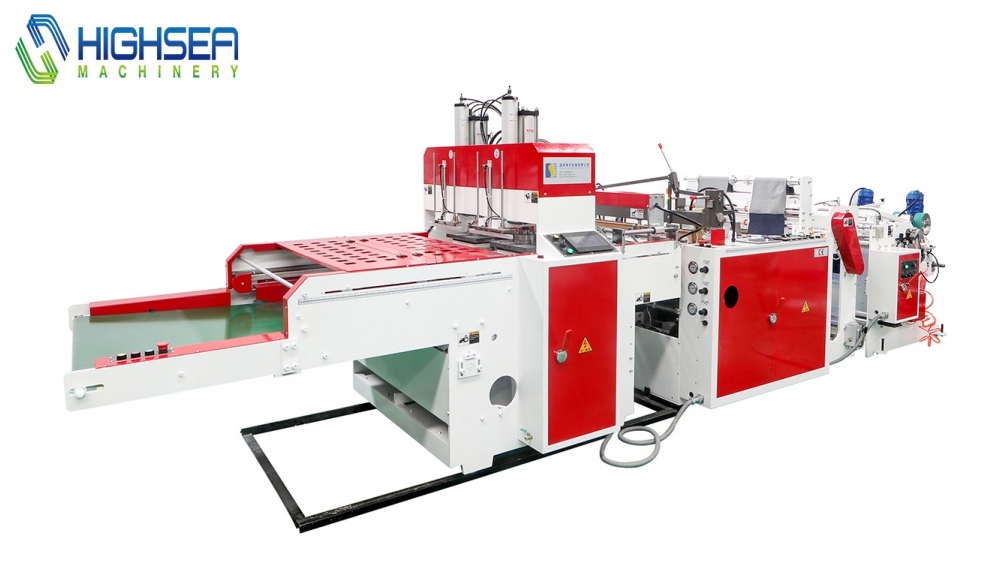

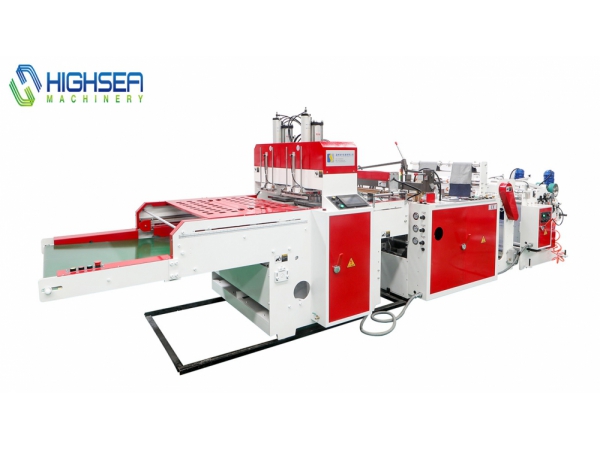

HSCG-450X2 is specially design for 2 lines high speed T-shirt bag production . Machine is equipped with two independent computers control design and driven by double 4.4 kw servo motors . Machine can seal and cut biodegradable plastic film and compostable film.

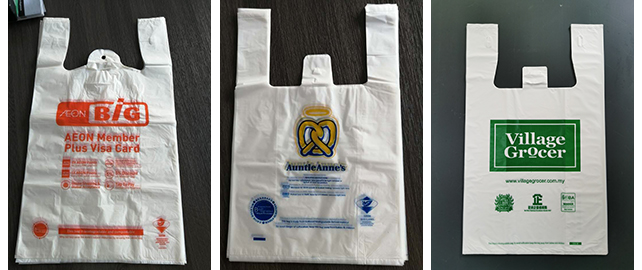

Machine is suitable for producing plastic T-shirt bags in high speed and stable operation for 24 hours.
Model | HSCG-450X2 |
Bag Width | 200mm - 400 mm |
Bag Length | 300mm - 650 mm |
Film thickness | 10-55 micron per layer |
Production Speed | 100-300pcs/min X 1 Line |
Set Line Speed | 80-110m/min |
Film Unwind Diameter | Φ900mm |
Total Power | 14KW |
Air consumption | 2HP |
Machine Weight | 2700KG |
Machine Dimension | L7000*W1500*H1900mm |
