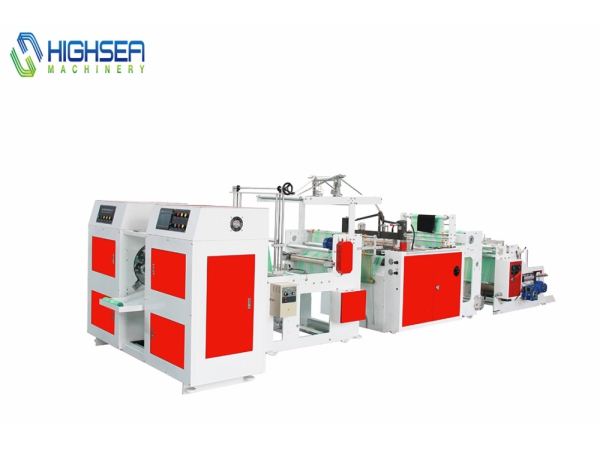

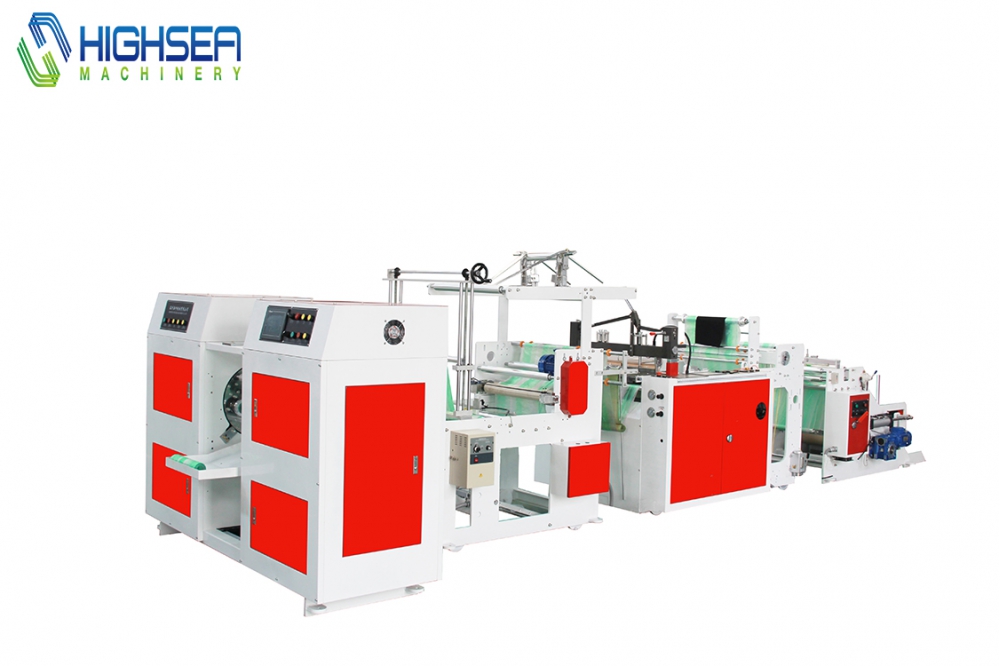

HSWX-700C is a bag roll to roll machine with C-fold unit. Machine is one line design, allows to make big trash bag. Bag forming procedure is that film feed first then do the weld and teeth cutting, then film will be C-folded to make small rolls, unwind in the last to make small rolls.

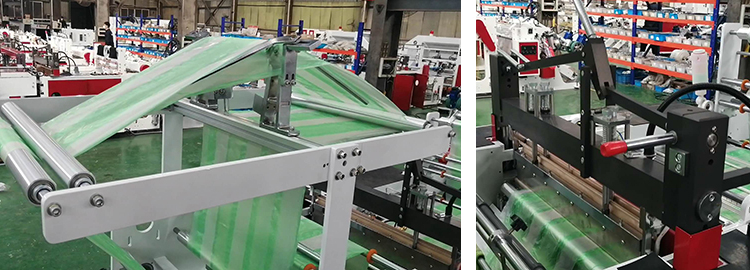

C-fold design will allows to change the C-fold size. The C-fold distance can be adjusted also. Machine equips with high voltage crevice sensor to have the precious count for bag pcs in one roll.
HIGH SEA, MAKE BAG FORMING MORE EASY.
Model | HSWZ-700 | HSWZ-900 | HSWZ-1200 |
Production Line | 1 Line | 1 Line | 1 Line |
Unwinder Film Width | 600mm | 850mm | 1100mm |
Max. Rewinder bag Width | 400mm | 450mm | 550mm |
Bag Length | 300-1500 mm | 300-1500 mm | 300-1500 mm |
Film thickness | 7-35 micron per layer | 7-35 micron per layer | 7-35 micron per layer |
Production Speed | 200pcs/min X 1line | 160pcs/min X 1line | 120pcs/min X 1line |
Production Speed | 80-100 m/min | 70-90 m/min | 50-70m/min |
Rewinder Diameter | 120mm | 120mm | 120mm |
Total Power | 14KW | 16KW | 18KW |
Air consumption | 4HP | 5HP | 5HP |
Machine Weight | 2800KG | 3200KG | 3800KG |
Machine Dimension | L6500 W2400 H1900mm | L7000 W2400 H1900mm | L7500 W2500 H2200mm |
