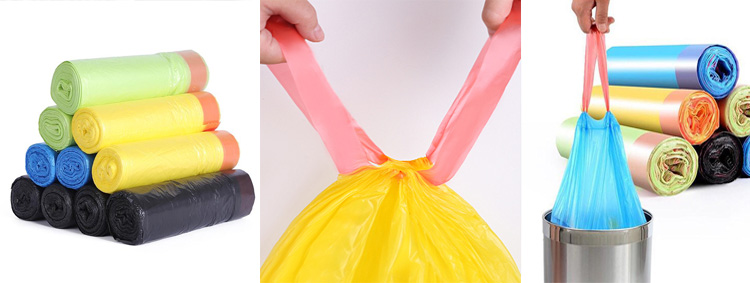

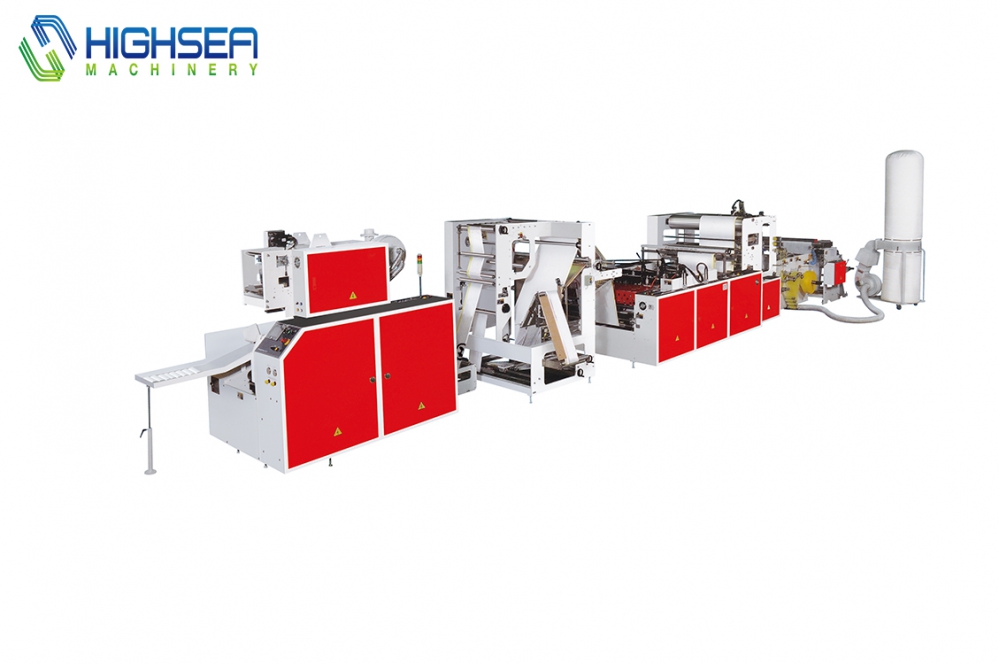

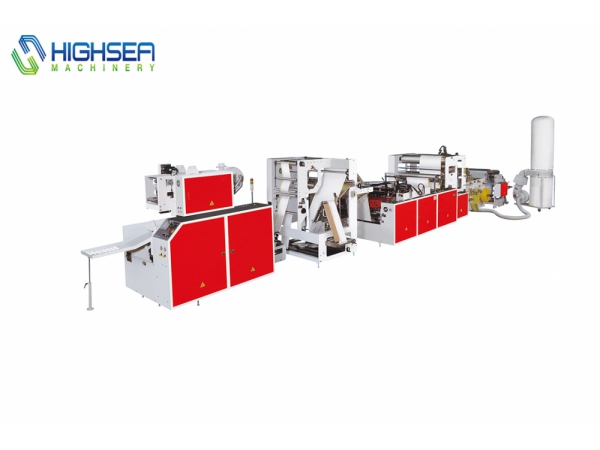

This machine is high speed servo-driven system designed to produce poly draw garbage bag-on-roll. which is suited for printing and non-printing bag making. The material of bag is LDPE, HDPE and recycle materials.
HSCS-1000 is a multi-function machine which makes draw tape garbage bag on roll and overlap/ interleaved rolling bags and bottom sealing and perforation bag on roll. YASKAWA motion control computer system, using 13 pcs servo motors control, user-friendly touch screen control system.

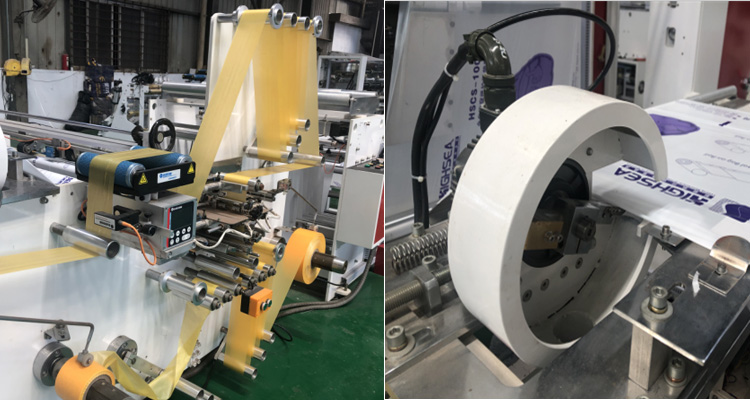

Film Unwinder, then poly draw insert, heat air sealing for draw tape, then bag side sealing and perforate and fold, then automatic rewind.
Technical parameter | |
Model | HSCS-1000 |
Bag Width | 1000 mm |
Bag Length | 900 mm |
Film thickness | 10-50 µm per layer |
Bag making Speed | 150 m/min |
Roll Change Speed | Max. 10 pcs |
Width of Draw Tape | 100 mm |
Draw Tape Roll Diameter | 600 mm |
Roll Width | 300 mm |
Roll Diameter | Φ 150 mm |
Total Power | 25 KW |
Air consumption | 5HP |
Machine Weight | 4200KG |
Machine Dimension | L15000*W2000*H2100 mm |
