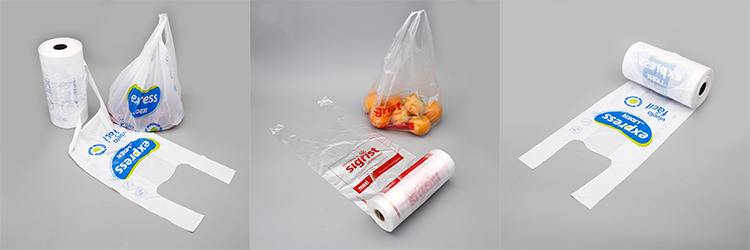

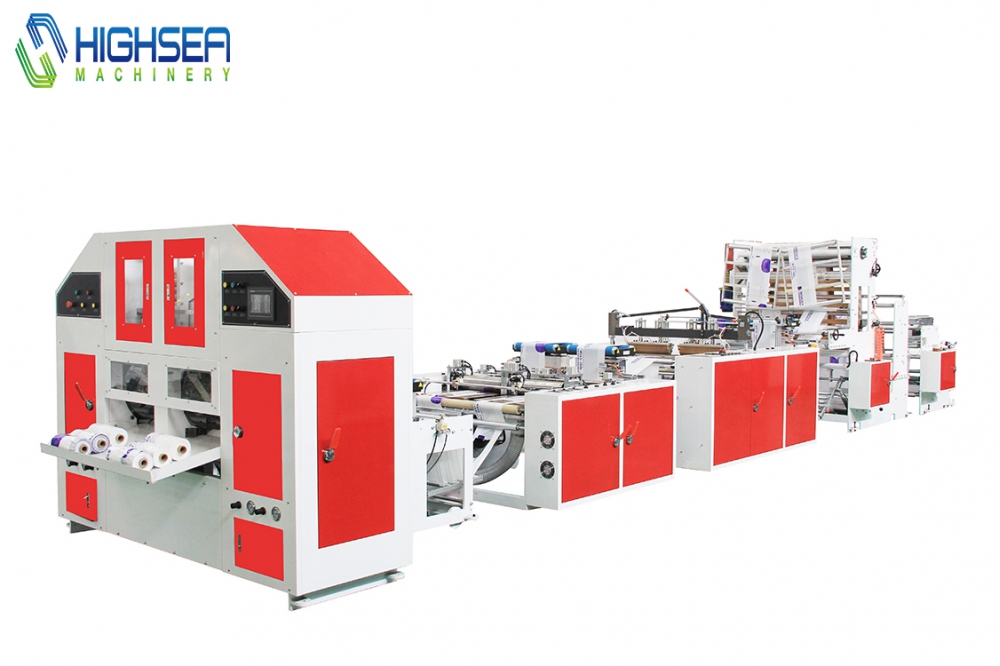

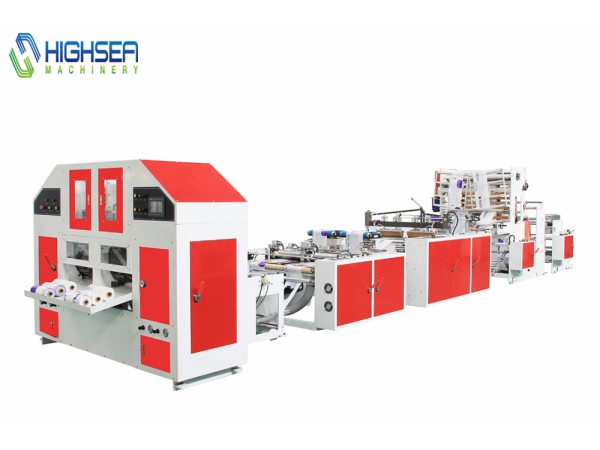

HSLB-450X2CB is designed for T-shirt bag-on-roll bags with paper or PVC core production. The D-punch plate can be removed to make bottom sealing bag-on-roll bags. One machine two options. Servo motors control makes film feeding more stable . It’s automatic film-break and core-change functions help bag suppliers to improve bag making capacity at the most extent. Two photocells make printed bags tracking more precise.
HSLB-450X2CB is designed for T-shirt bag-on-roll bags with paper or PVC core production.
The D-punch plate can be removed to make bottom sealing bag-on-roll bags. One machine two options. Servo motors control makes film feeding more stable . It’s automatic film-break and core-change functions help bag suppliers to improve bag making capacity at the most extent. Two photocells make printed bags tracking more precise.
Model | HSLB-450X2CB |
Production Line | 2 Lines |
Big Jumbo Roll Width | 1000mm |
Bag Width（Max.） | 330 mm |
Bag Length | 330-1000 mm |
Film thickness | 10-35 micron per layer |
Production Speed（Max.） | 80-200 pcs/min/line |
Roll Size | 160mm*330mm (Max.) |
Film Unwinder Diameter | Φ900*300mm |
Core Size | 25-65mm |
Total Power | 25KW |
Air consumption | 6HP |
Machine Weight | 5000KG |
Machine Dimension | L9500*W2400*H2200mm |
