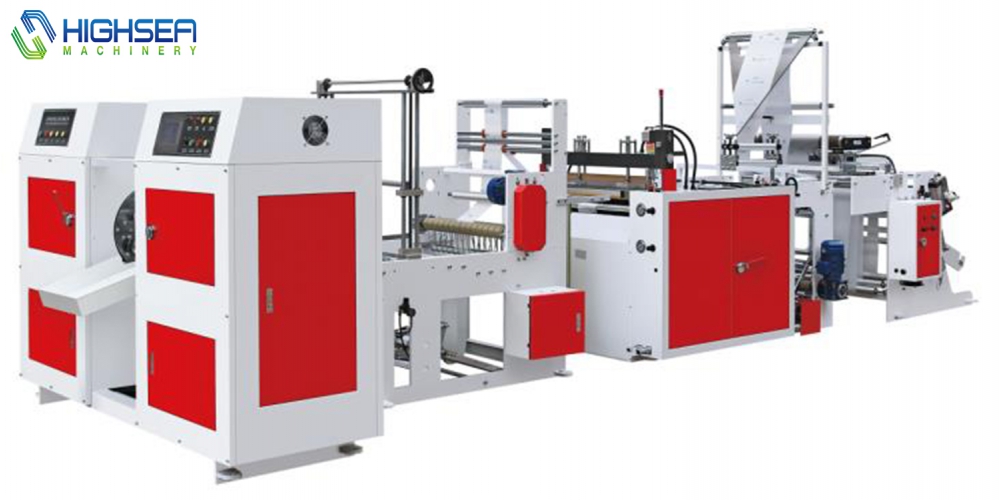

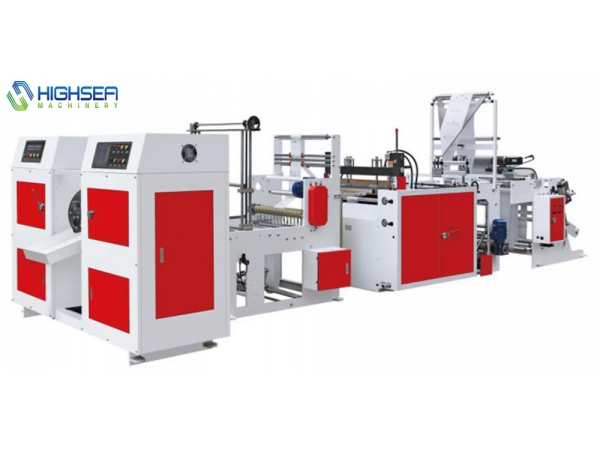

HSVZ-700 machine is a LDPE star sealing perforation bag forming equipment. Bag production procedures is that film unwinding first, then do the triangle folding, sealing and perforating and rewinding in the last.

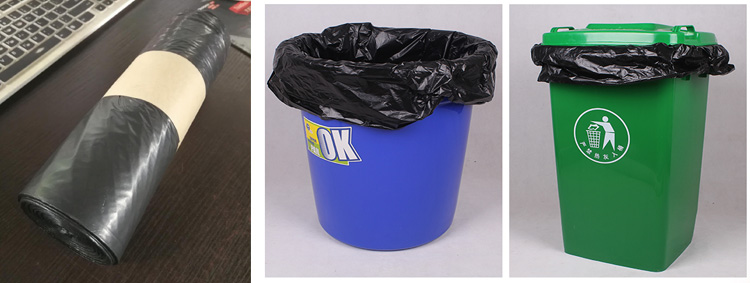

This machine can make Star sealing bag on roll coreless.
Machine can seal high thickness film which can be more than 60 micron per layer. Engineer has the technics to seal LDPE or HDPE film in high thickness. Machine adopts folding before sealing, this will make sure bag with star sealing.
HIGH SEA, MAKE BAG FORMING MORE EASY.
Model | HSVZ-700 | HSVZ-900 | HSVZ-1200 |
Production Line | 1 Line | 1 Line | 1 Line |
Max. Film Width | 600mm | 850mm | 1100 mm |
Max. Bag Roll Width | 600mm | 600mm | 550 mm |
Bag Length | 300-1500 mm | 400-1500 mm | 400-1500 mm |
Film thickness | 7-35 micron per layer | 7-35 micron per layer | 7-35 micron per layer |
Max. Production Speed | 200pcs/min | 160pcs/min | 120pcs/min |
Set Line Speed | 80-100m/min | 60-90m/min | 50-80m/min |
Max. Rewinder Diameter | 120mm | 120mm | 120mm |
Total Power | 12KW | 13KW | 14KW |
Air consumption | 3HP | 3HP | 4HP |
Machine Weight | 2800KG | 3200KG | 3800KG |
Machine Dimension | L7000 W2000 H1900mm | L7500 W2000 H2100mm | L7500 W2200 H2400mm |
