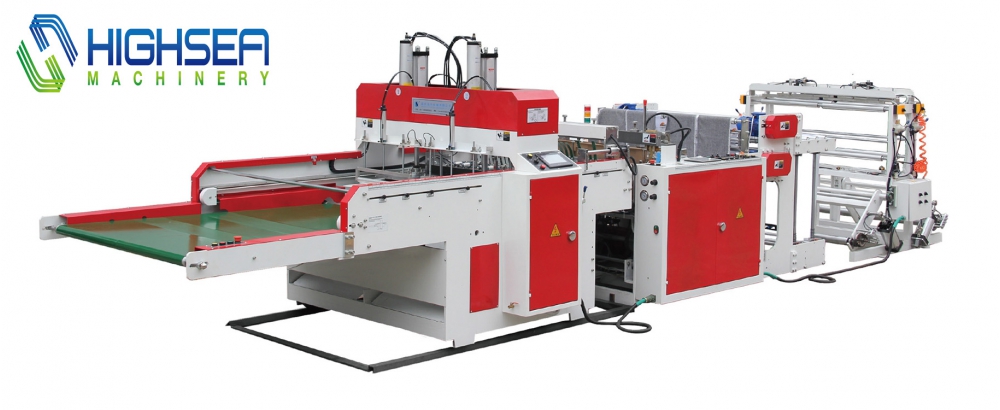

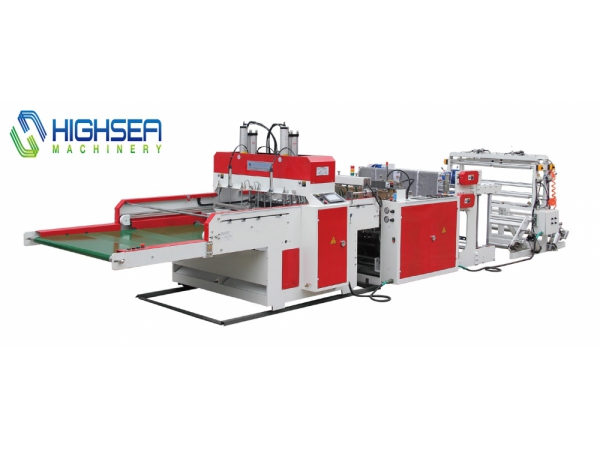

HSG-300x4 is specially design for 4 lines high speed small T-shirt bag production . If bag width over 250mm, machine can produce two lines to make big bags.
Machine has two sets of color photocells to tracking the printed bags. Four lines or two lines bag sealing and cutting are working sychronously. Machine use two sets of 5 tons hydralic cyliners to punch bags into T-shirt shape with handle.

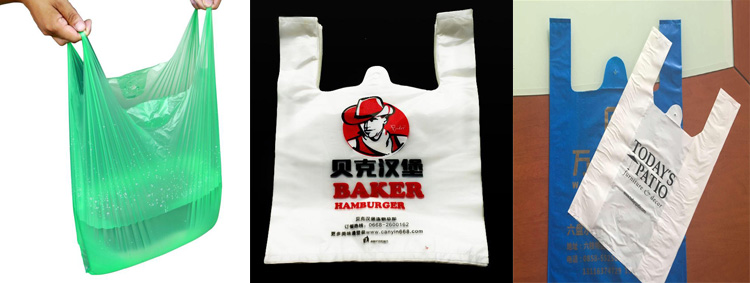

Machine is suitable for producing small plastic T-shirt bags in volume production and stable operation.HIGH SEA, MAKE BAG FORMING MORE EASY.
Model | HSG-300X4 |
Production Line | 4 Lines/ 2 Lines |
Bag Width | 170mm - 250 mm four lines |
250mm - 520mm for two lines | |
Bag Length | 350mm - 900 mm |
Film thickness | 10-55 micron per layer |
Production Speed | 160-220pcs/min*4 Lines |
Film Unwind Diameter | Φ900mm |
Total Power | 15KW |
Air Consumption | 3HP |
Machine Weight | 3200KG |
Machine Dimension | L8500*W2000*H1900mm |
